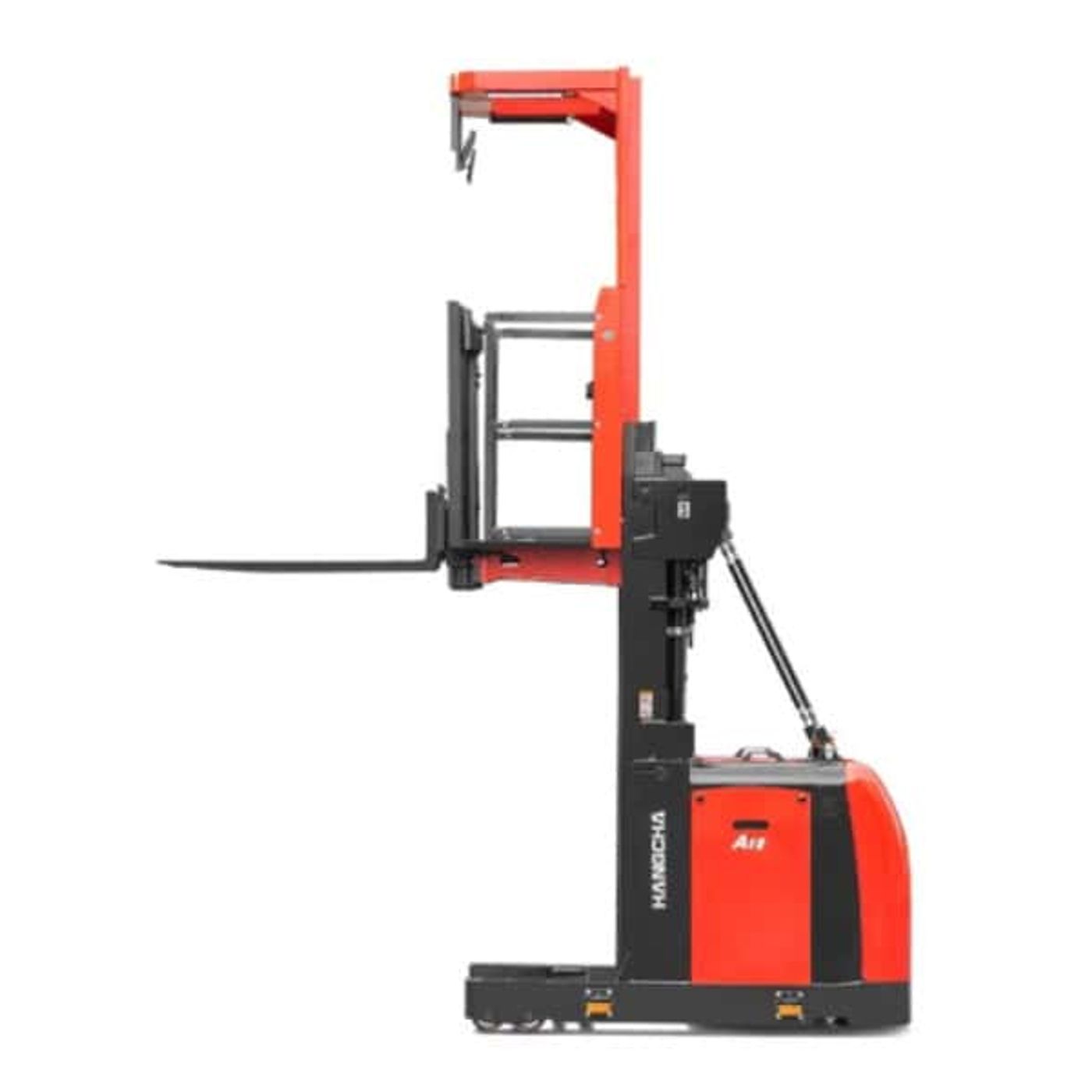

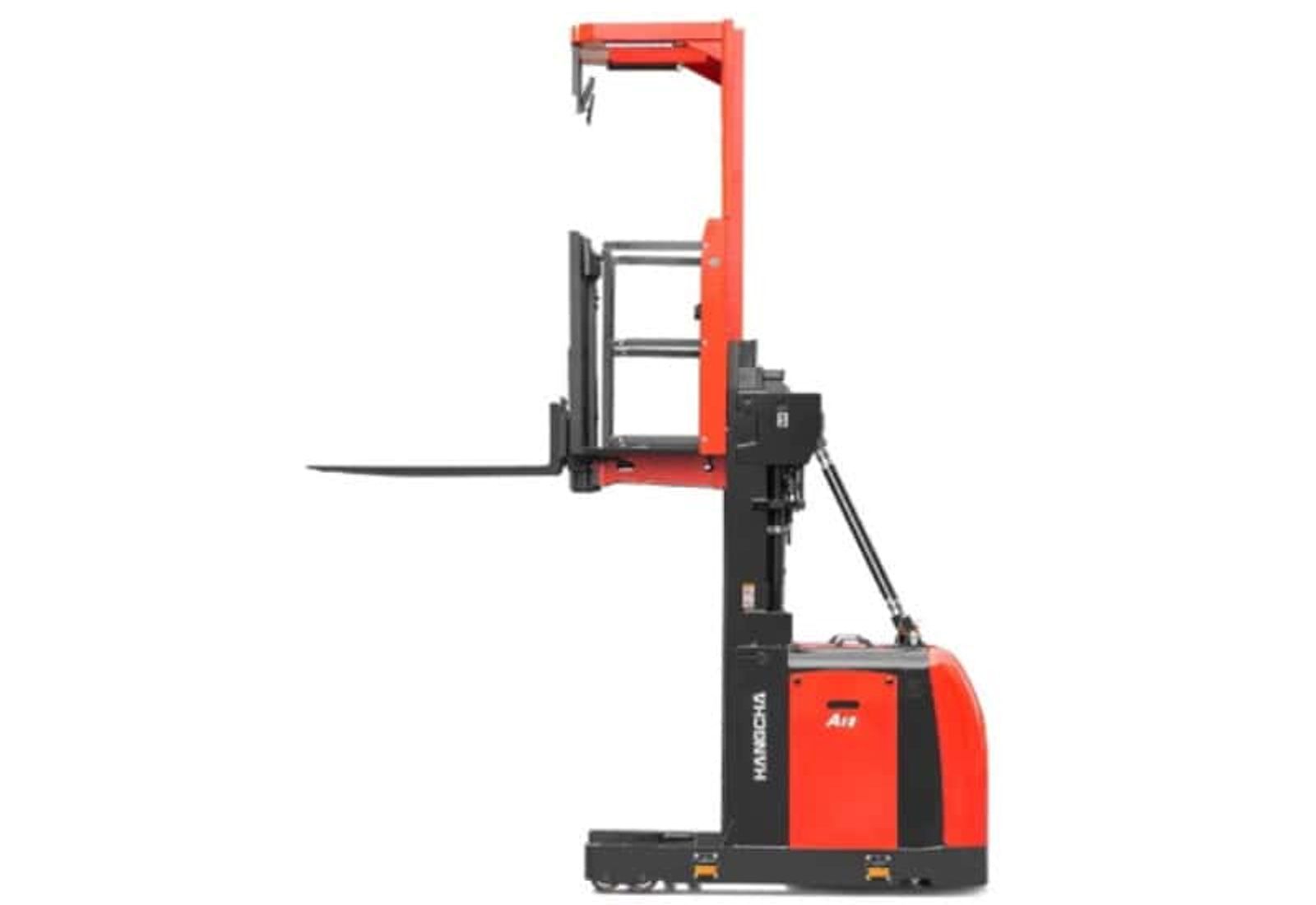

A Series High Level Order Picker, 1.2t

The A Series High-Level Order Picker, 1.2t provides excellent performance in narrow aisles for a fraction of the price. With picking height up to 10 metres, the compact high-level order picker offers greater operational flexibility within larger warehouses. In-height adjustable controls, clear information display, low step-in, and smooth steering increase driver comfort.

Description

The maximum driving speed at full load is up to 10km/h, which greatly improves the work efficiency within the warehouse. The driving speed is related to the lifting height, whereby the higher the lifting height, the lower the driving speed and the smaller the acceleration.

High Quality Components

The AC motor has no carbon brush and is maintenance-free, which greatly saves the cost of use. The integrated power display, timing and fault self-diagnosis metre also reduces downtime. Fitted with industry recognised European components for excellent performance and reliable quality. This includes a German ZF reduction gearbox, Schabmueller AC drive and steering motor, as well as an advanced CURTIS AC control system for precise, smooth control.

Standard equipment

• ZF drive unit
• LORD steering gear
• CURTIS AC motor controller
• Free Acceleration lever
• Automatic speed reduction in corners
• CURTIS multi-function instrument
• Chain switch
• Guard rail switch
• Reflective mirror
• LED top light
• LED sidelight
• Emergency power switch
• Police light
• Height sensor
• Safety pedal
• Tilt switch
• Left and right guard rail
• Cup holder
• Electrostatic belt
• Electromagnetic brake
• Supplementary lift
• Full-length safety belt
• Mounted fork
• Welded fork
