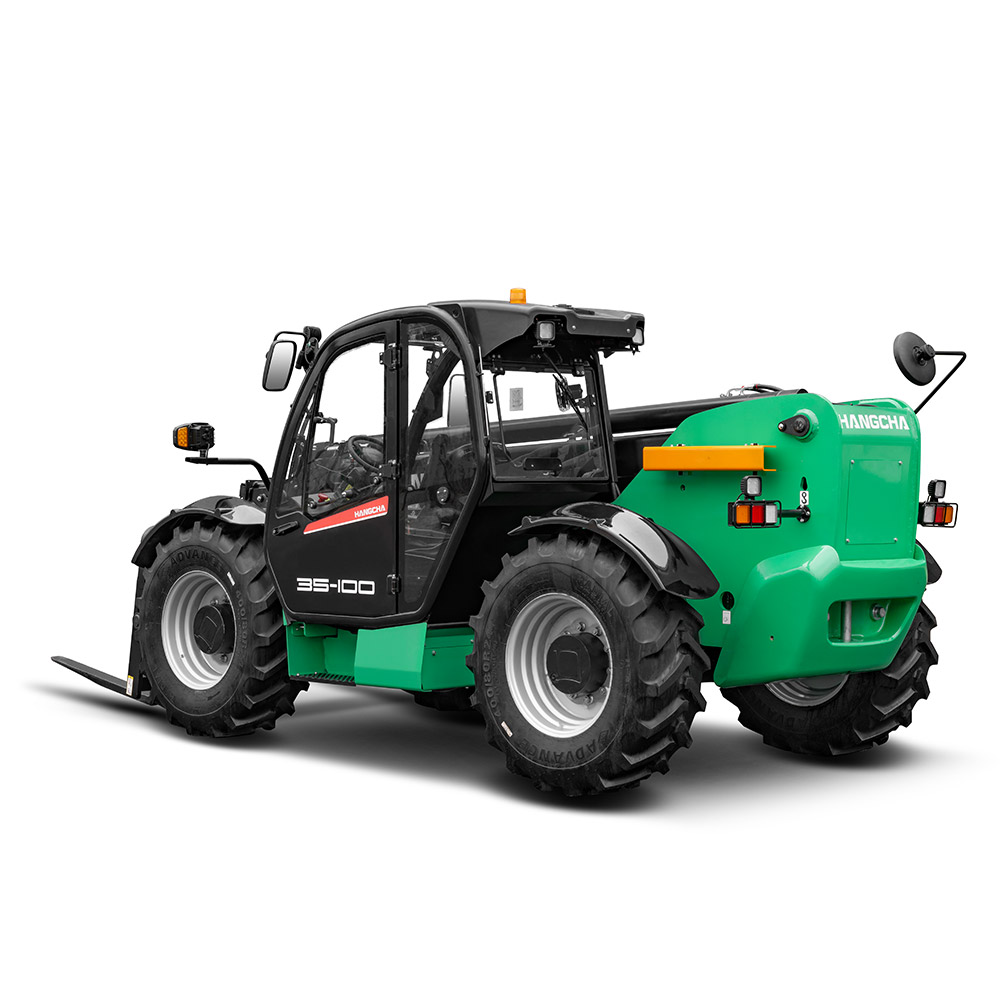

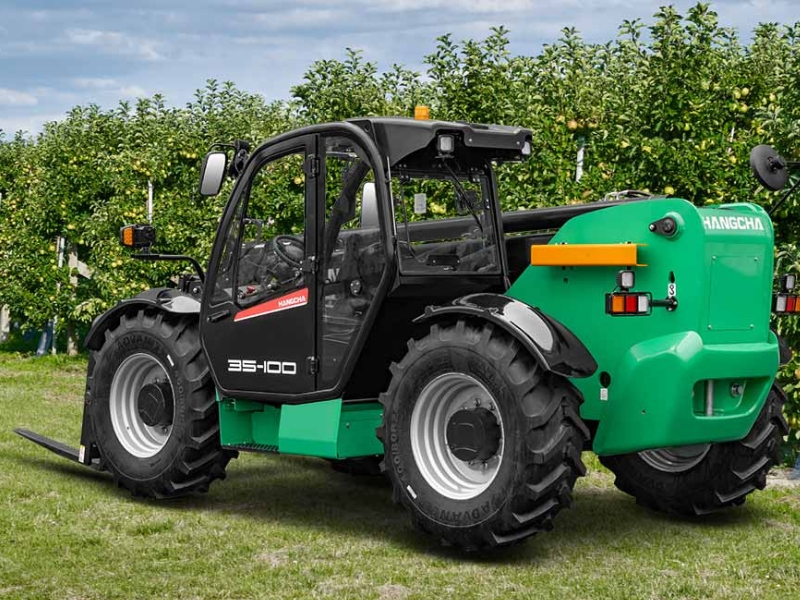

HC Hangcha XH Series High-Voltage Telehandler 2.5–3.5t
The Hangcha XH Series Telehandler redefines material handling with cutting-edge high-voltage lithium-ion technology, delivering exceptional performance, safety, and operator comfort. Built for demanding environments, it combines power, precision, and sustainability.
Description
Key Features
- Capacity: 2,500–3,500 kg
- Performance:
- Top speed: 25 km/h
- Gradeability: 45%
- Advanced Permanent Magnet Synchronous Motor (PMSM) for superior efficiency
- High-Voltage Lithium Battery:
- 310V system
- Fast charging: 30%–80% in just 30 minutes
- Dual charging options: DC fast-charge port & 10kW built-in charger
Technical Highlights
- Max lifting height: 9.8 m
- Max forward reach: 7 m
- System voltage: 310V
- Battery capacity: 173 Ah / 53 kWh
Download the Brochure
Versatility
- Quick-change attachments for multiple applications:
- Fork loading
- Shovel loading
- Clamping
- Aerial work
- Driving Modes: 2WD & AWD
- Steering Modes:
-
- 2-Wheel Front Steer
- 4-Wheel Crab Steer
- 4-Wheel Circle Steer
Comfort & Control

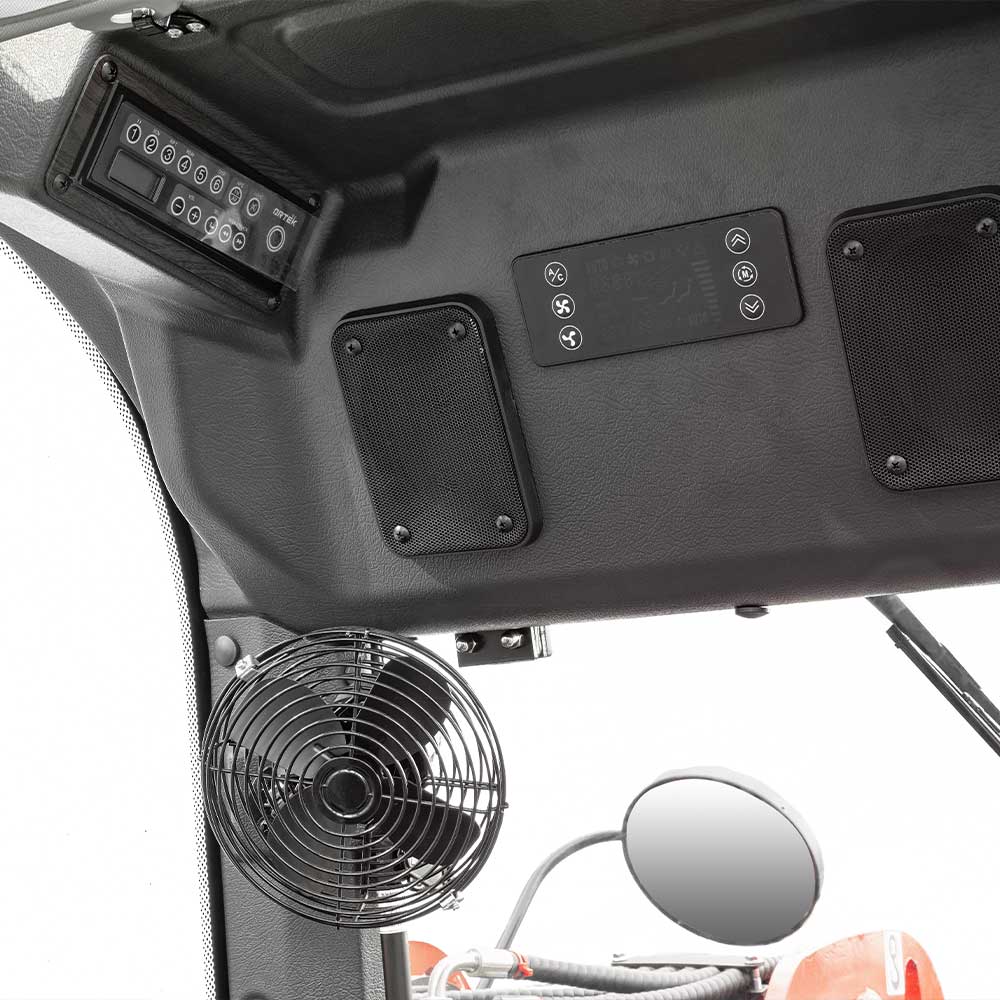

- Ergonomic cab with optional air conditioning, radio, and USB charging

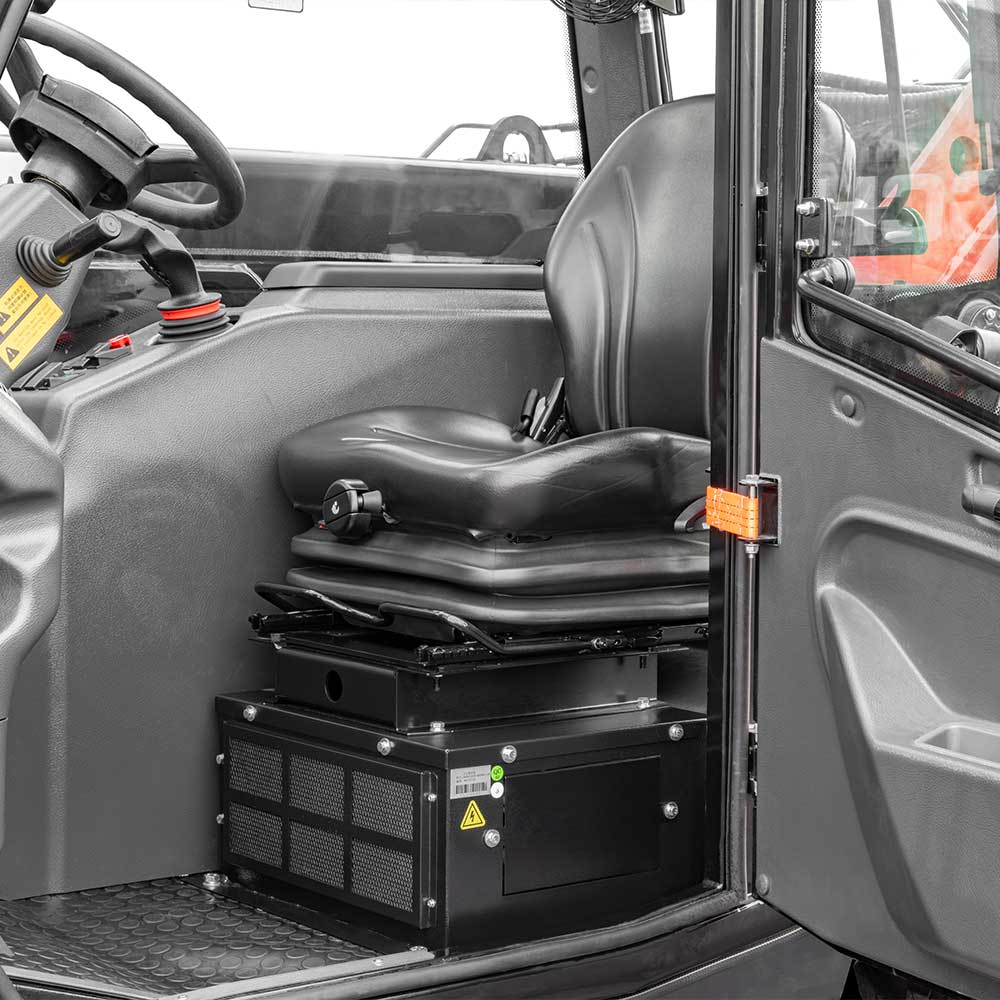

- Adjustable suspension seat for maximum comfort

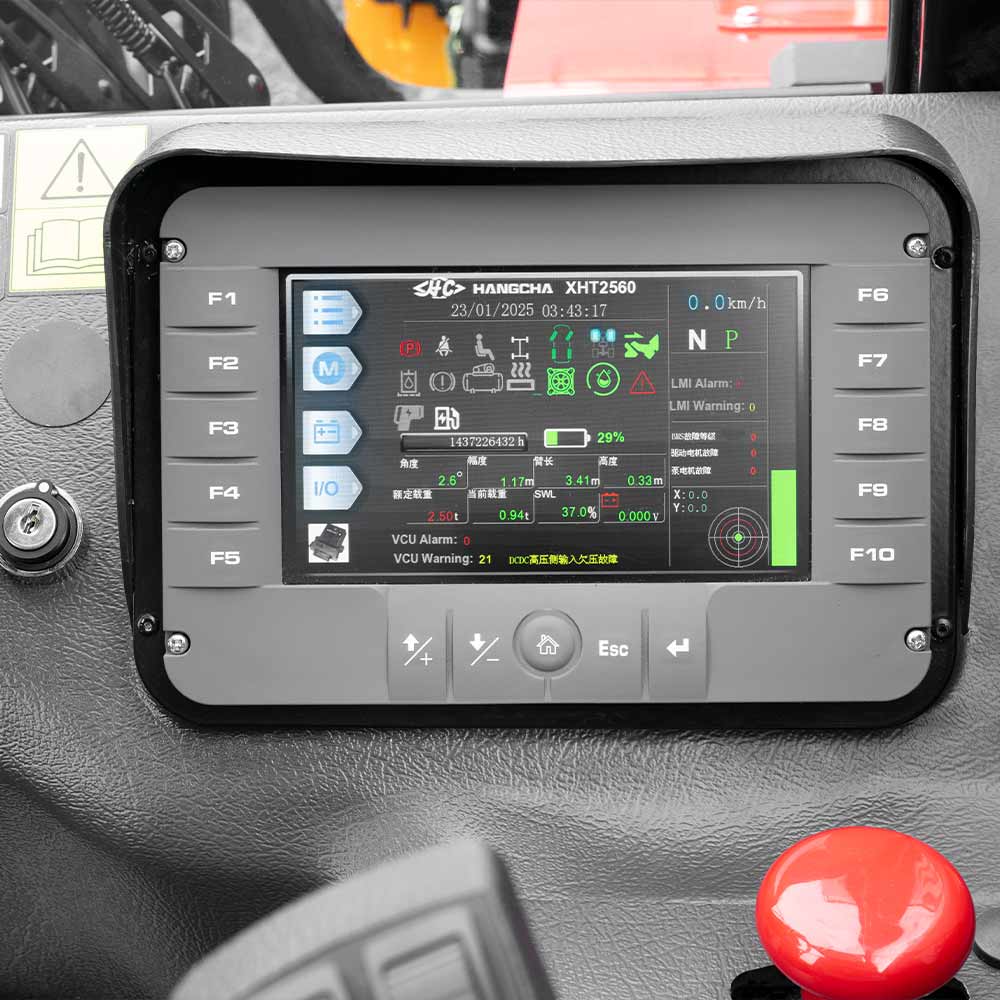

- 7-inch display with real-time machine status and intelligent fault diagnostics
- Full-proportional joystick for smooth, precise movements
Safety
- Lithium iron phosphate battery for proven reliability
- Overload monitoring system to prevent accidents
- LED high-brightness work lights for night operations
- Maintenance arm and wide-angle tilting cover for safe servicing
